DC Fast Charger · PXL-DC-90

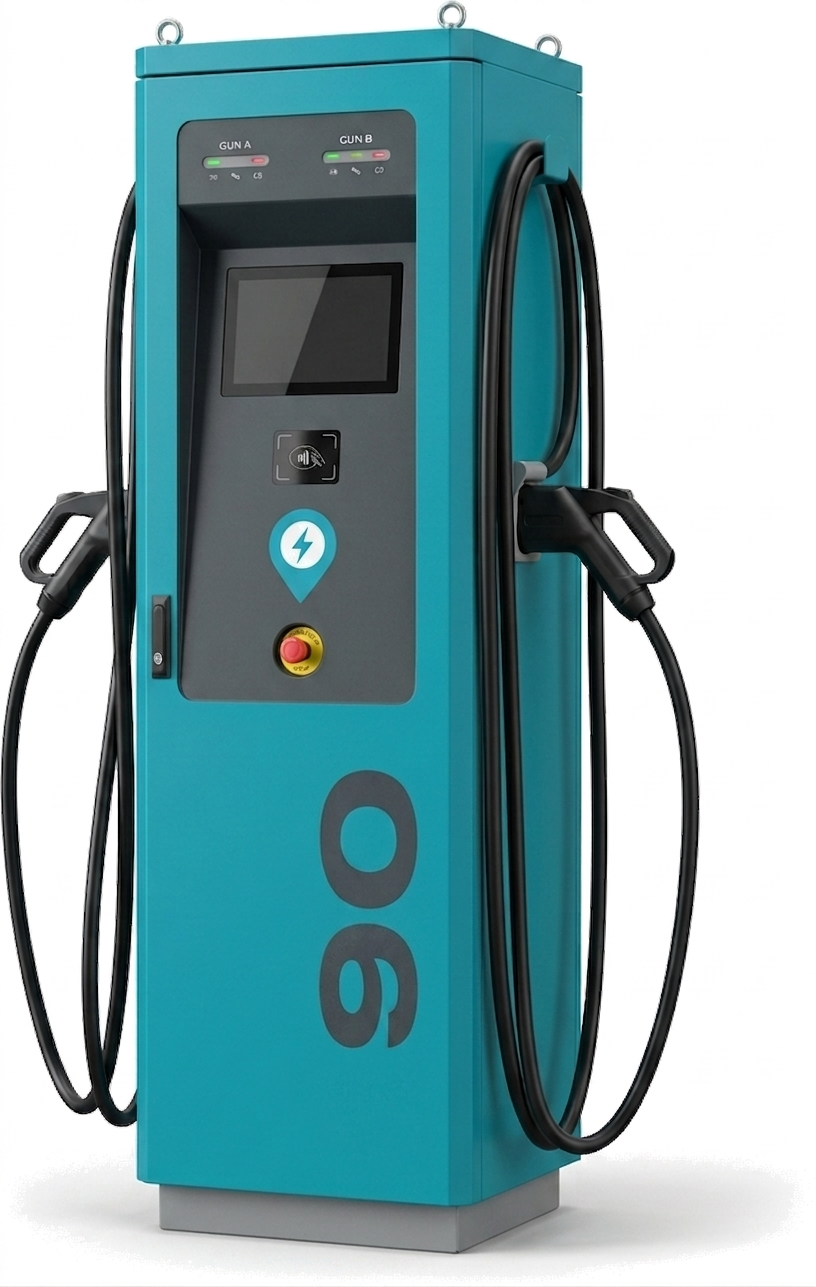

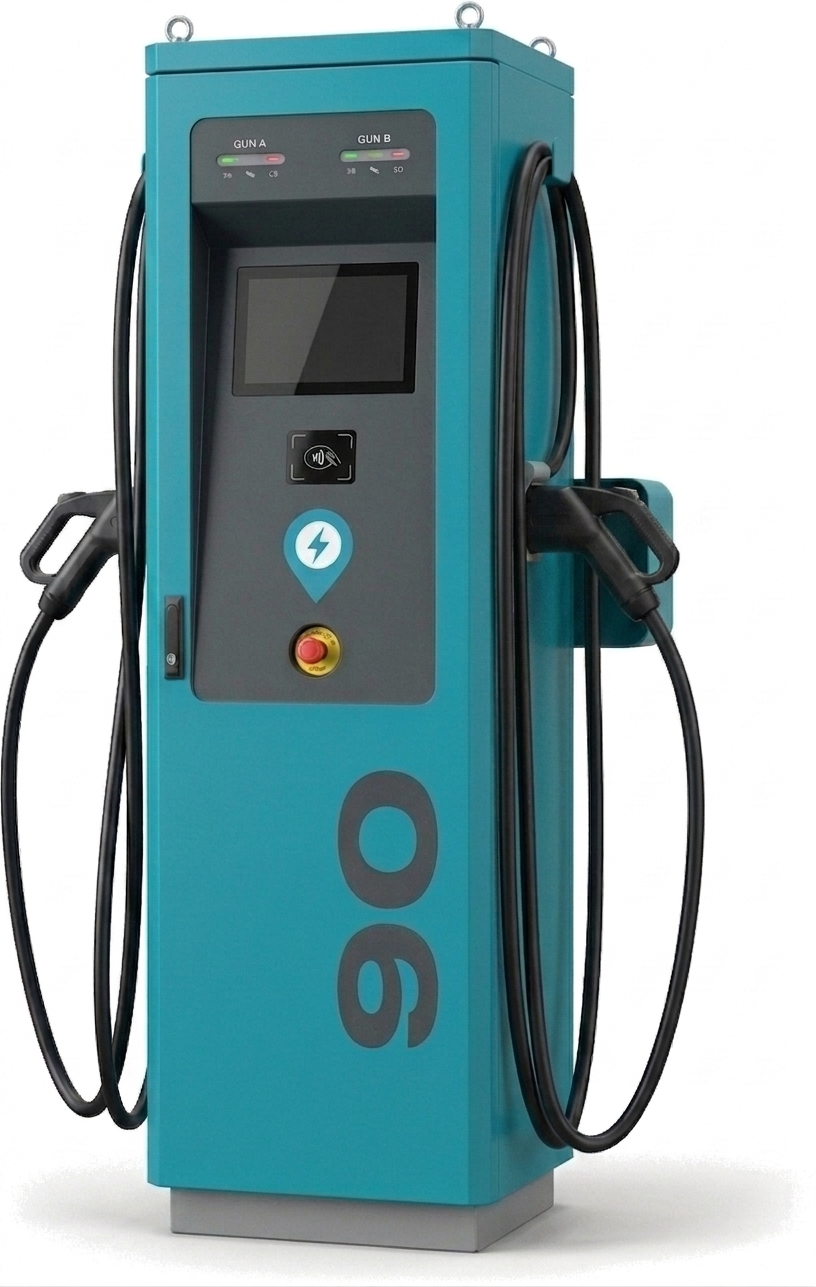

90 kW DC Fast Charger
90 kW
High-throughput city & corridor
The 90 kW DC Fast Charger sits between city rapid and highway rapid — perfect for busy Tier-2 hubs, Bengaluru–Mysuru corridor sites and airport parking. Dual-gun CCS2, dynamic power sharing, and rugged IP54 all-weather build.
Dual-gun CCS2 with dynamic power sharing
200 – 1000 V DC wide output window
OCPP 1.6J — CMS-agnostic
RFID · Mobile App · QR authentication
3G / 4G / Wi-Fi / Ethernet
IP54 · -30 °C to +75 °C operation
Technical Specifications
ModelPXL-DC-90
Rated Output90 kW
Outputs2 × CCS2 (dynamic power sharing)
Output Voltage200 – 1000 V DC
InputThree-Phase 400 V AC (±10%) · 45 – 55 Hz
ProtectionIP54 · -30 °C to +75 °C
CommunicationOCPP 1.6J
AuthenticationRFID · Mobile App · QR Code
Connectivity3G · 4G · Wi-Fi · Ethernet
StandardsIS 17017 / IEC 61851 · ARAI Certified
Ideal For
Tier-2 corridor hubs
Airport parking
Metro transit stops
Busy city plazas
