DC Fast Charger · PXL-DC-60

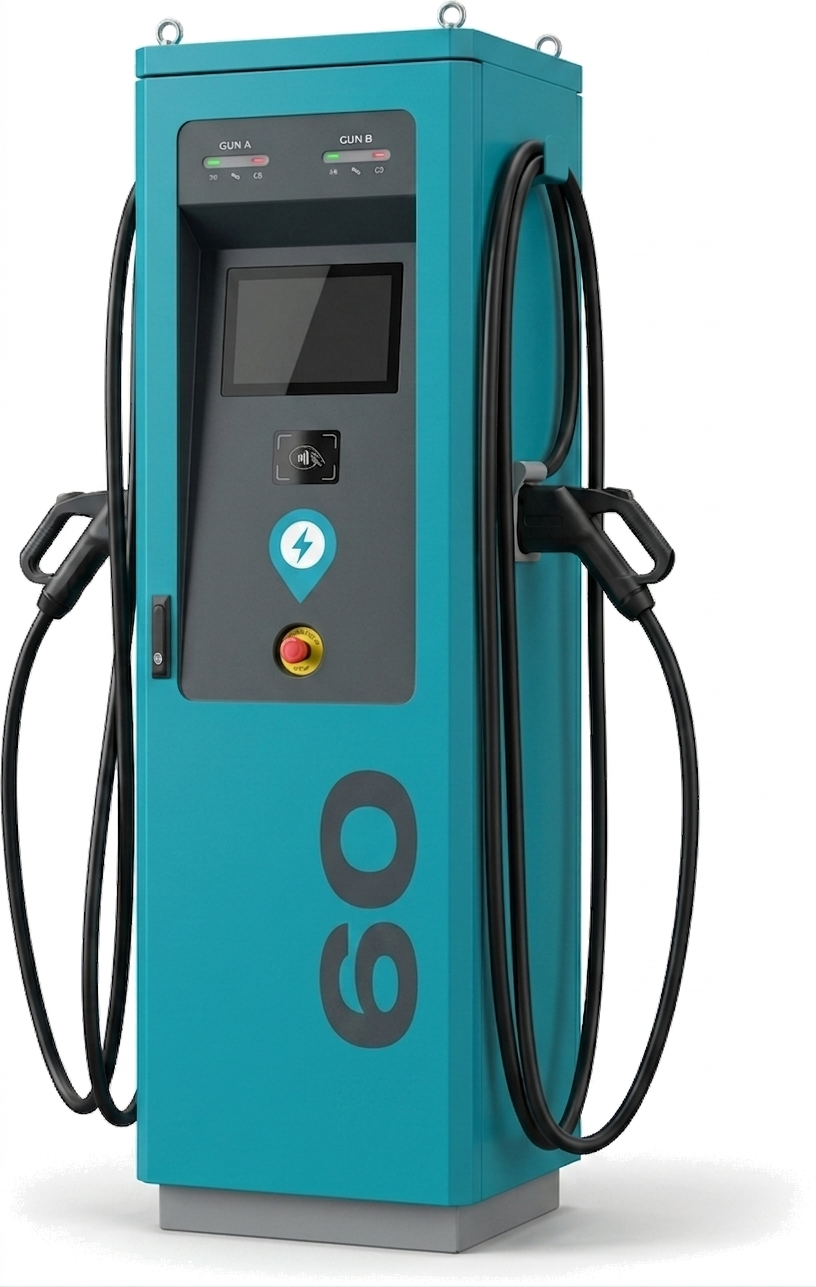

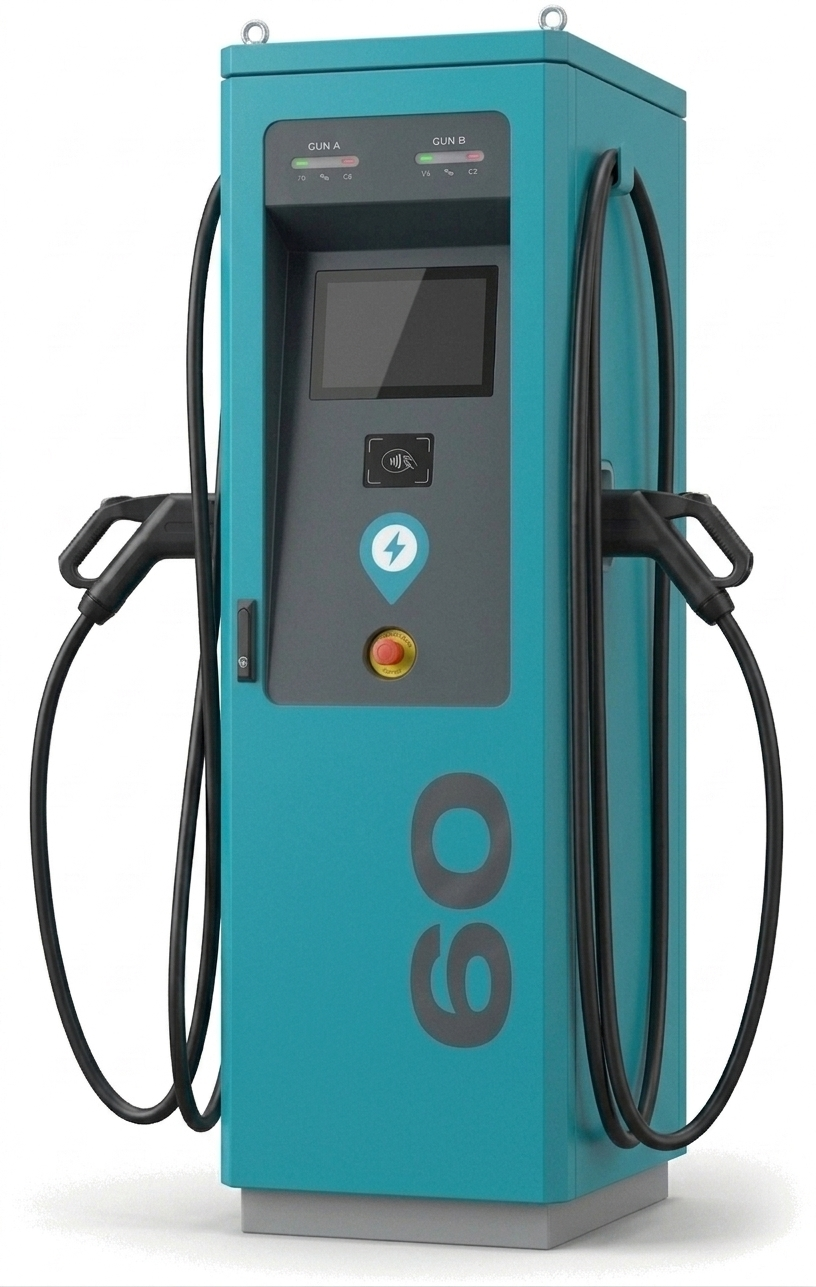

60 kW DC Fast Charger
60 kW
Dual-gun workhorse
The 60 kW DC Fast Charger is the workhorse of Indian city hubs and highway ancillary sites — dual-gun CCS2 with dynamic power sharing so two vehicles can charge simultaneously. Rugged IP54, wide operating temperature and CMS-agnostic OCPP 1.6J.
Dual-gun CCS2 with dynamic power sharing
200 – 1000 V DC wide output window
OCPP 1.6J — CMS-agnostic
RFID · Mobile App · QR authentication
3G / 4G / Wi-Fi / Ethernet
IP54 · -30 °C to +75 °C operation
Technical Specifications
ModelPXL-DC-60
Rated Output60 kW
Outputs2 × CCS2 (dynamic power sharing)
Output Voltage200 – 1000 V DC
InputThree-Phase 400 V AC (±10%) · 45 – 55 Hz
ProtectionIP54 · -30 °C to +75 °C
CommunicationOCPP 1.6J
AuthenticationRFID · Mobile App · QR Code
Connectivity3G · 4G · Wi-Fi · Ethernet
StandardsIS 17017 / IEC 61851 · ARAI Certified
Ideal For
City charging hubs
Highway ancillary sites
Fleet depots
Public transit
