DC Ultra-Fast Charger · PXL-DC-400

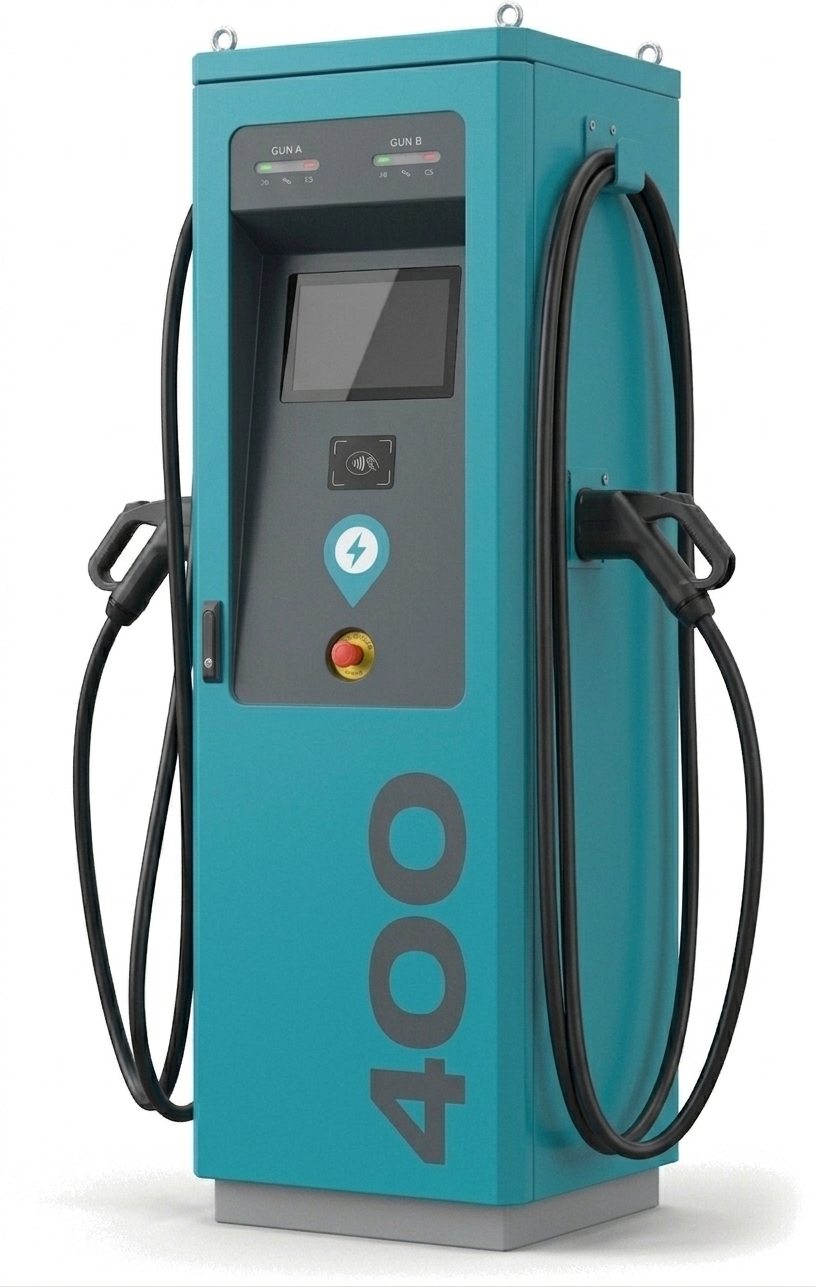

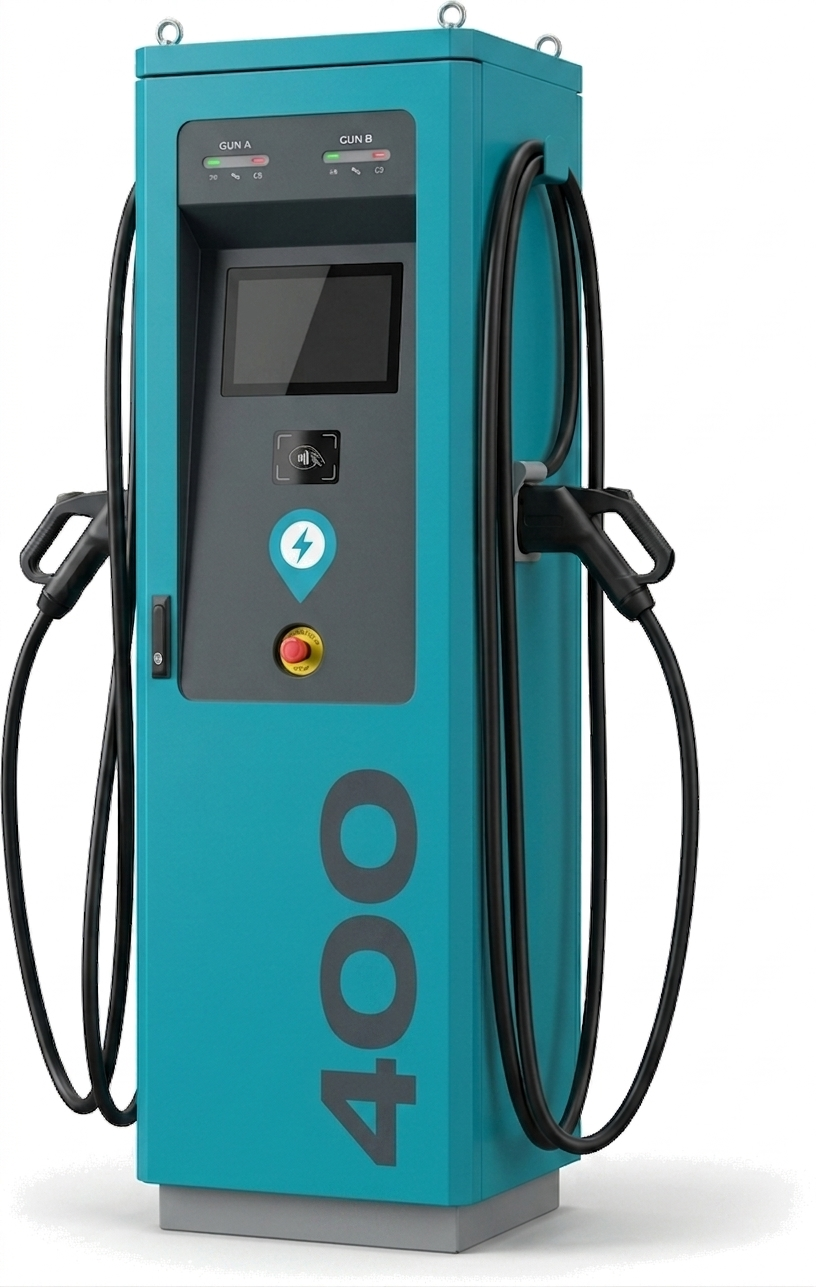

400 kW DC Fast Charger
400 kW
Flagship expressway hypercharger
The 400 kW DC Ultra-Fast Charger is the flagship of the PixellEnergy hardware range — built for the most demanding expressway plazas, national e-bus fleets and heavy commercial vehicle depots. Multi-gun, liquid-cooled, BESS-compatible.
Dual-gun CCS2 with dynamic power sharing
200 – 1000 V DC wide output window
OCPP 1.6J — CMS-agnostic
RFID · Mobile App · QR authentication
3G / 4G / Wi-Fi / Ethernet
IP54 · -30 °C to +75 °C operation
Technical Specifications
ModelPXL-DC-400
Rated Output400 kW
Output Voltage200 – 1000 V DC
InputThree-Phase 400 V AC (±10%) · 45 – 55 Hz
ProtectionIP54 · -30 °C to +75 °C
CoolingLiquid-cooled cables · active thermal management
CommunicationOCPP 1.6J
Connectivity3G · 4G · Wi-Fi · Ethernet
StandardsIS 17017 / IEC 61851 · ARAI Certified
Ideal For
National expressways
E-bus mega depots
HCV & truck fleets
Flagship mega hubs
