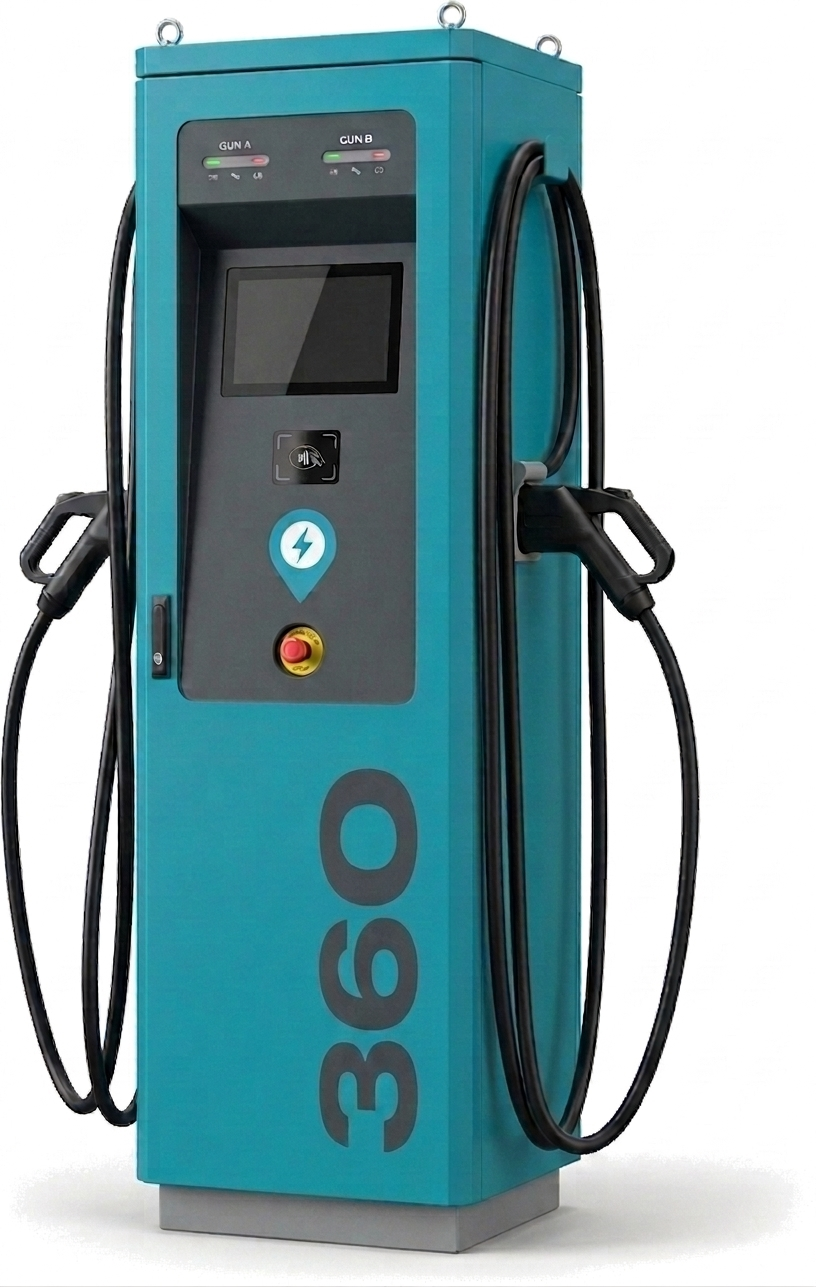

    360 kW DC Fast Charger — front view
    DC Ultra-Fast Charger · PXL-DC-360

    360 kW DC Fast Charger

    360 kW

    Multi-gun expressway hypercharger

    The 360 kW DC Ultra-Fast Charger is engineered for expressway plazas, e-bus depots and heavy commercial fleet sites. Multi-gun architecture, liquid-cooled cables and CMS-agnostic OCPP 1.6J for premium highway hubs.

    Request a Quote
    Dual-gun CCS2 with dynamic power sharing
    200 – 1000 V DC wide output window
    OCPP 1.6J — CMS-agnostic
    RFID · Mobile App · QR authentication
    3G / 4G / Wi-Fi / Ethernet
    IP54 · -30 °C to +75 °C operation

    Technical Specifications

    ModelPXL-DC-360
    Rated Output360 kW
    Output Voltage200 – 1000 V DC
    InputThree-Phase 400 V AC (±10%) · 45 – 55 Hz
    ProtectionIP54 · -30 °C to +75 °C
    CoolingLiquid-cooled cables
    CommunicationOCPP 1.6J
    Connectivity3G · 4G · Wi-Fi · Ethernet
    StandardsIS 17017 / IEC 61851 · ARAI Certified

    Ideal For

    Expressway plazas
    E-bus depots
    Truck & HCV fleets
    Premium mega hubs
